Picture frames, seemingly simple objects, can be surprisingly intricate when it comes to construction. The joinery, the method used to connect the frame's pieces, directly impacts the strength, aesthetics, and overall quality of the finished product. Choosing the right joinery technique can elevate your woodworking project from amateur to professional, creating a frame that's as durable as it is beautiful. From classic miter joints to more complex variations, the options can seem overwhelming. This guide focuses on five effective and readily accessible picture frame joinery techniques suitable for woodworkers of various skill levels.
This article will walk you through the step-by-step process of executing each technique, providing clear instructions and helpful tips for achieving precise and strong joints. We’ll cover the tools and materials required, common pitfalls to avoid, and the unique advantages of each method, allowing you to choose the best approach for your next picture framing project. Prepare to master the art of picture frame joinery!
Safety Guidelines
- Always use appropriate safety glasses to protect your eyes from flying debris during cutting and sanding.
- Sharp tools are safer tools. Maintain your blades and chisels to ensure clean cuts and avoid slips.
- Use clamps to secure your workpieces firmly before gluing and joining. This prevents movement and ensures a strong, accurate joint.
Methods: Splined Miter Joint
Tools Needed
- Table Saw
- Chop Saw
- Corner Clamp
Step-by-Step Instructions
Miter Preparation
- Cut miters on the table saw, ensuring accurate setup.

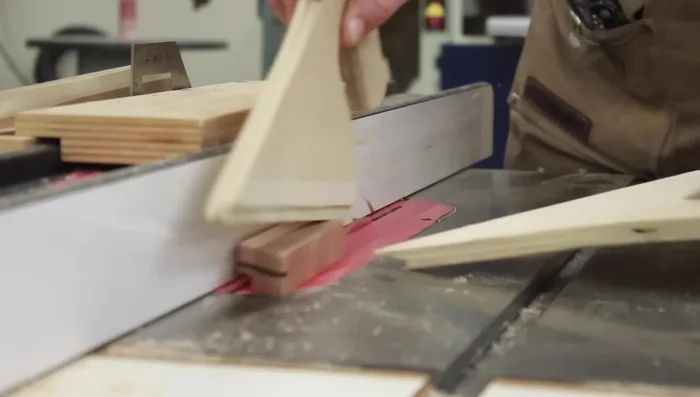

- Cut rabbets on the table saw.
Miter Preparation Spline Creation

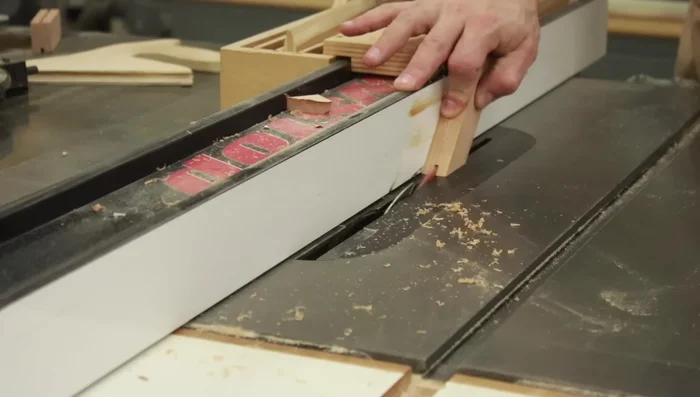

- Cut the spline using the table saw blade thickness as a reference, referencing the outside face of the frame against the fence.
Spline Creation Assembly

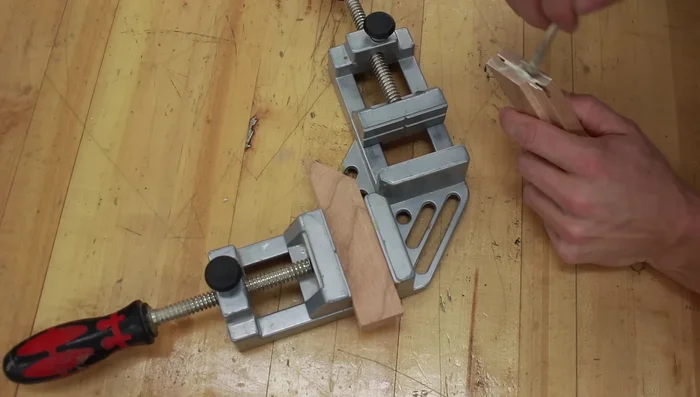

- Glue the mitered pieces and spline together using a corner clamp.
Assembly Finishing

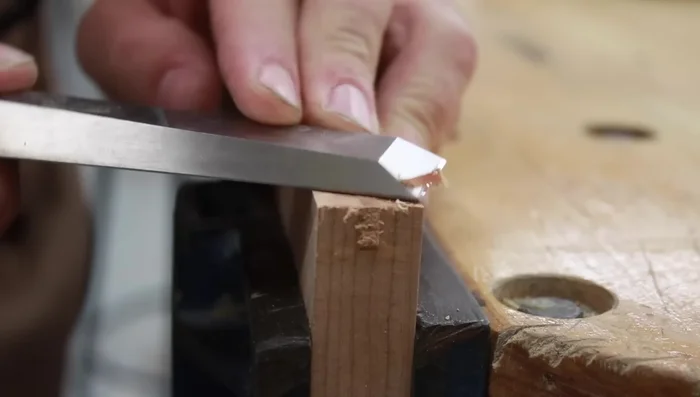

- Pare the spline flush with a saw and chisel or plane.
Finishing
Tips
- Ensure accurate saw setup using a combination square or digital bevel gauge.
- Use safe techniques when cutting the spline.
- Spline thickness matches blade thickness (1/8 inch in this case).
Methods: Half Lap Joint
Tools Needed
- Table Saw
- Router Table
- Spring Clamp
- Chisel
Step-by-Step Instructions
Prepare the Wood Pieces

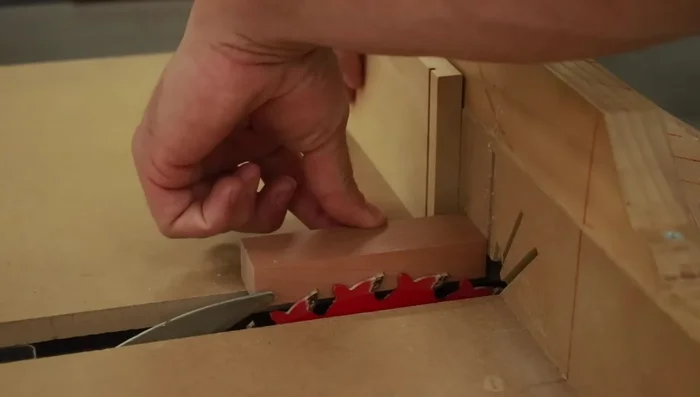

- Remove half the material from both faces of the wood pieces.
Prepare the Wood Pieces Cut Rabbets

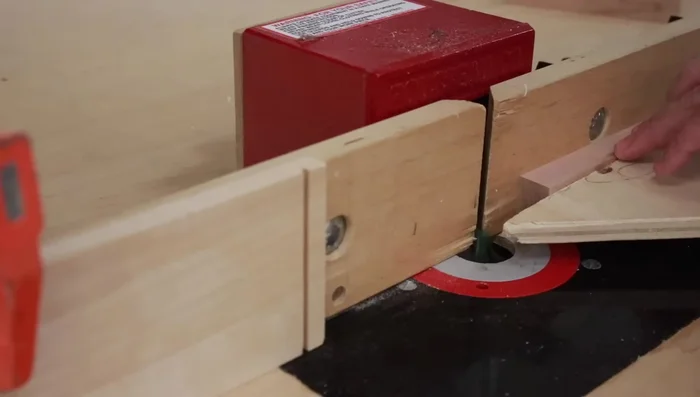

- Cut rabbets on the router table (ensure accurate setup to avoid errors).
Cut Rabbets Refine the Rabbet
- Square up the rabbet using a chisel.
Refine the Rabbet Assemble the Joint

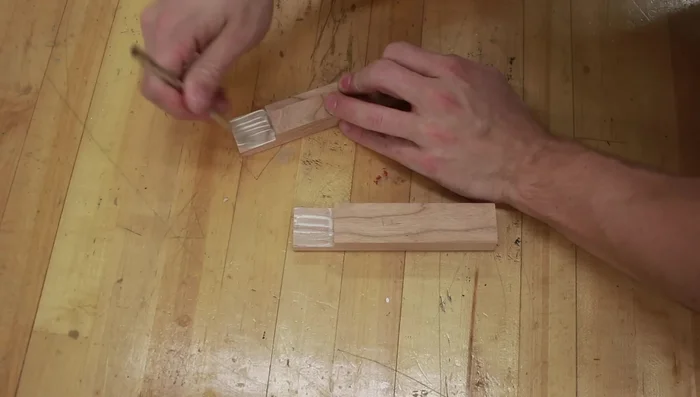

- Apply glue to long grain faces and clamp.
Assemble the Joint
Tips
- Use a spare piece of wood to accurately set the saw.
- Set the stop block to the outside of the blade to avoid inaccuracies.
- Use a spiral up-cut router bit for clean rabbets to minimize tear-out.
Methods: Half Lap Miter Joint
Tools Needed
- Table Saw
- Router Table
- Chisel
- Clamp
Step-by-Step Instructions
Prepare the Half Lap Miter Joint
- Cut the shoulder to half the wood's thickness.
- Set miter gauge to 45 degrees and cut the bottom shoulder.

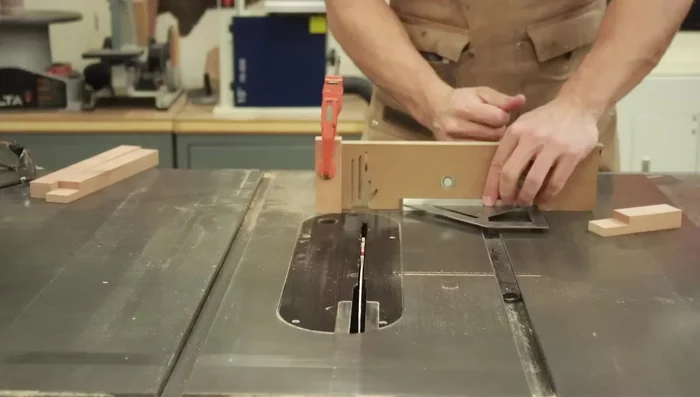

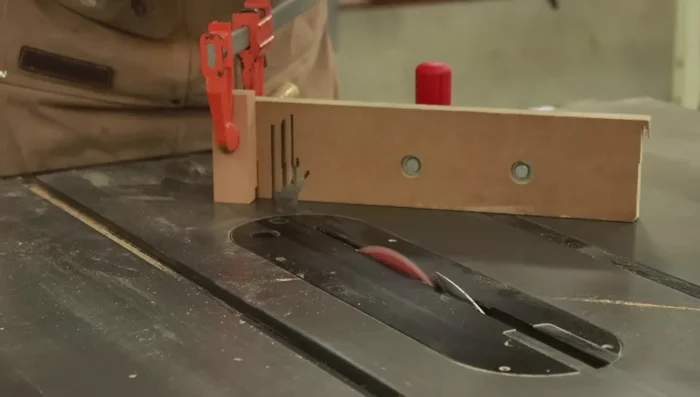

- Remove material like a standard half lap, ensuring accurate cuts.
Prepare the Half Lap Miter Joint Cut Rabbets

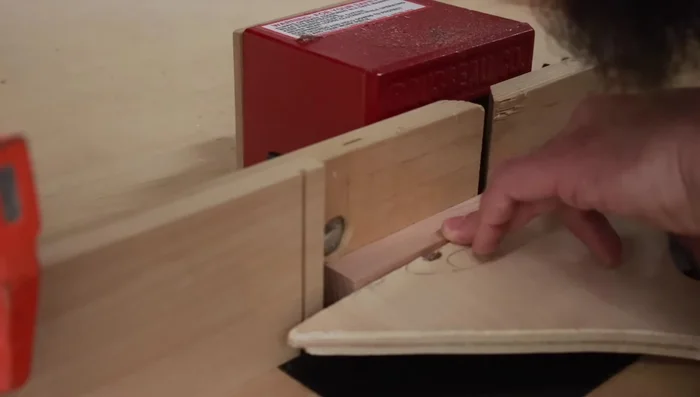

- Cut rabbets, ensuring a stopped cut for the bottom piece.
Cut Rabbets Clean Up Rabbets

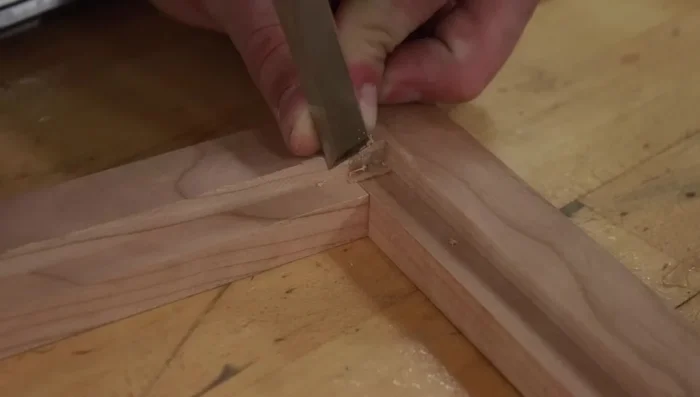

- Square up the rabbet with a knife and chisel.
Clean Up Rabbets Assemble the Joint

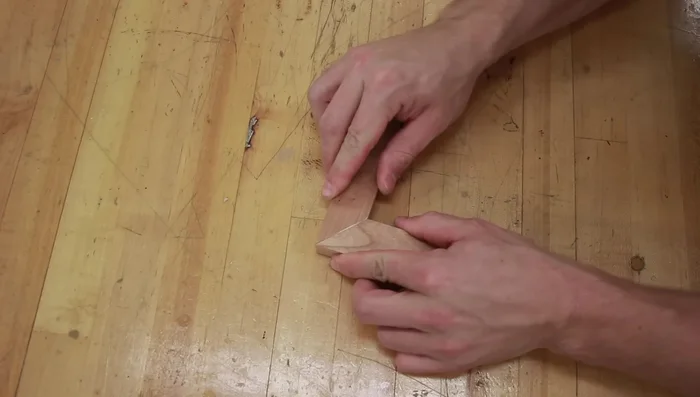

- Apply glue and clamp, ensuring the miter shoulder closes properly.
Assemble the Joint
Tips
- Ensure accurate cuts and alignment of the final cut with the bottom shoulder.
