DIY Arrow Trellis: Build a Stunning Garden Feature

Updated at: 07/02/2025

Transform your garden from ordinary to extraordinary with a stunning DIY arrow trellis! This unique garden feature adds a touch of rustic charm and provides invaluable support for climbing plants, creating a vibrant and eye-catching focal point. Imagine the beauty of honeysuckle or clematis weaving its way through the intricate design, adding layers of texture and color to your outdoor space. Arrow trellises are surprisingly simple to construct, requiring only readily available materials and basic tools. They offer a rewarding project for both experienced DIY enthusiasts and enthusiastic beginners alike.

Forget expensive store-bought trellises – unleash your creativity and build a bespoke arrow trellis tailored perfectly to your garden's needs and style. This step-by-step guide will walk you through the entire process, from choosing the right materials to installing your finished masterpiece, ensuring a beautiful and functional addition to your green haven. Let's get started!

Preparation and Safety Guidelines

Tools Needed
  • 2x2s
  • 1x2s
  • Wood glue
  • Nails
  • Exterior wood glue (recommended)
  • Deck screws (1 1/4 inch and 2 1/2 inch)
  • Post cap plate (3.5 x 3.5 inches)
  • Clamps
  • Drill
  • Measuring tape
  • Saw
Safety Guidelines
  • Always wear safety glasses and gloves when working with sharp tools and wood.
  • Ensure the trellis is securely anchored to the ground or a sturdy structure to prevent tipping or collapse, especially in windy conditions.
  • Use treated lumber for outdoor use to prevent rot and extend the life of your trellis.

Step-by-Step Instructions

  1. Cut Trellis Components

    • Cut 1x2s for decorative arrow-shaped boards. Cut 45-degree angles to create the arrow shape. Mark a cross for a straight arrow.
    • Cut the legs (7 feet long). Use a 7-degree miter and a 7-degree bevel for each leg.

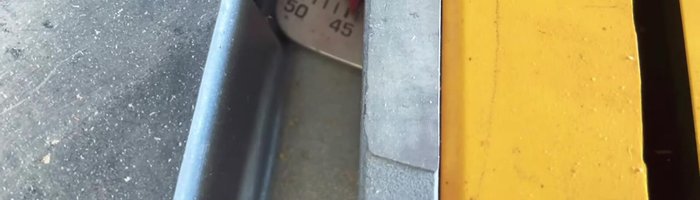

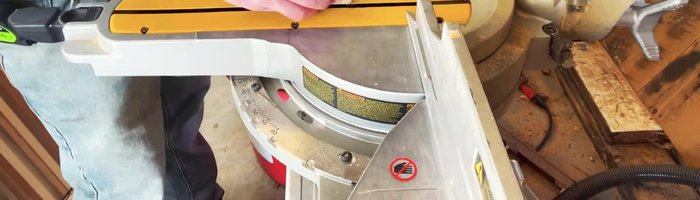

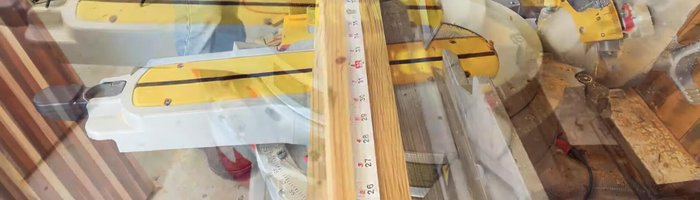

    • Cut square segments for the trellis sides. Use a 7-degree bevel and a 45-degree miter. Cut four 10-inch, four 15-inch, four 20-inch, and four 25-inch pieces.
    Cut square segments for the trellis sides. Use a 7-degree bevel and a 45-degree miter. Cut four 10-inch, four 15-inch, four 20-inch, and four 25-inch pieces.Cut square segments for the trellis sides. Use a 7-degree bevel and a 45-degree miter. Cut four 10-inch, four 15-inch, four 20-inch, and four 25-inch pieces.Cut square segments for the trellis sides. Use a 7-degree bevel and a 45-degree miter. Cut four 10-inch, four 15-inch, four 20-inch, and four 25-inch pieces.
    Cut Trellis Components

  2. Assemble Square Segments

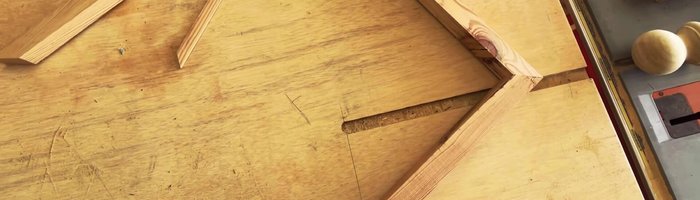

    • Assemble the square segments. Use wood glue and nails to temporarily hold them together until the glue dries. Lay them out with the longest edges facing each other to ensure proper alignment.
    Assemble the square segments. Use wood glue and nails to temporarily hold them together until the glue dries. Lay them out with the longest edges facing each other to ensure proper alignment.
    Assemble Square Segments

  3. Prepare and Attach Base Plate

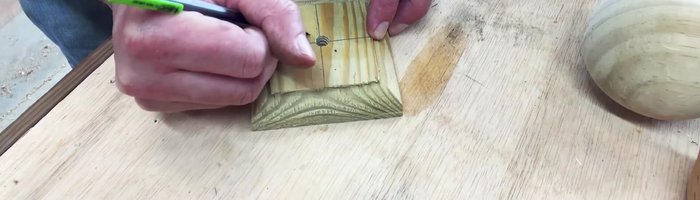

    • Prepare the post cap plate. Divide it into four equal sections and make countersink marks for screws to attach the legs. Pre-drill these holes.

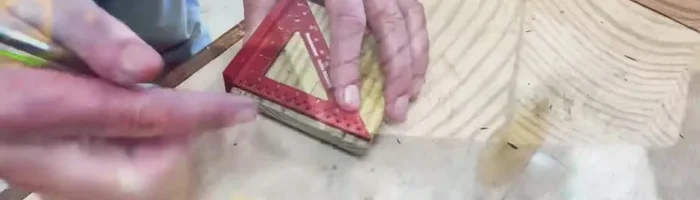

    • Attach the legs to the post cap plate. Stack legs together, mark a circle around the center, and align with the cap plate markings. Pre-drill, glue, and screw the top two legs to the plate. Flip, and repeat for the bottom two legs.
    Attach the legs to the post cap plate. Stack legs together, mark a circle around the center, and align with the cap plate markings. Pre-drill, glue, and screw the top two legs to the plate. Flip, and repeat for the bottom two legs.Attach the legs to the post cap plate. Stack legs together, mark a circle around the center, and align with the cap plate markings. Pre-drill, glue, and screw the top two legs to the plate. Flip, and repeat for the bottom two legs.
    Prepare and Attach Base Plate

  4. Attach Main Square Segments

    • Attach the bottom square segment to the trellis base. Measure 16 inches up from the bottom and mark. Clamp, pre-drill, and countersink before attaching with 2 1/2-inch deck screws.

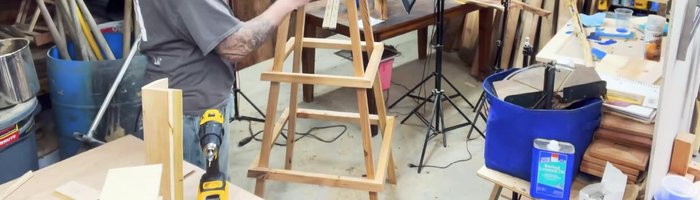

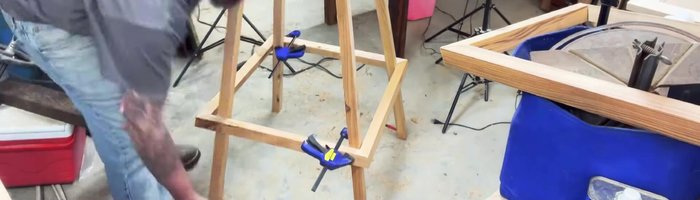

    • Attach remaining square segments. Attach one by one, pre-drilling and countersinking for 2 1/2-inch deck screws. Ensure proper alignment to maintain the pyramid shape.
    Attach remaining square segments. Attach one by one, pre-drilling and countersinking for 2 1/2-inch deck screws. Ensure proper alignment to maintain the pyramid shape.Attach remaining square segments. Attach one by one, pre-drilling and countersinking for 2 1/2-inch deck screws. Ensure proper alignment to maintain the pyramid shape.
    Attach Main Square Segments

  5. Attach Decorative Arrows

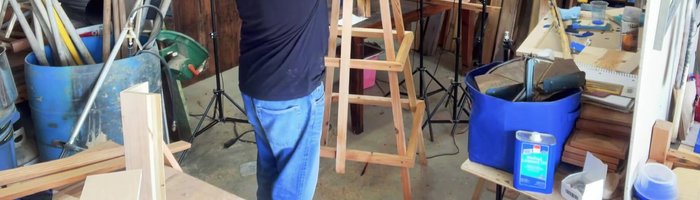

    • Attach decorative arrow pieces. Center and attach them at the desired height (8 inches in this example) using 1 1/4-inch deck screws.
    Attach decorative arrow pieces. Center and attach them at the desired height (8 inches in this example) using 1 1/4-inch deck screws.
    Attach Decorative Arrows

  6. Attach Post Cap

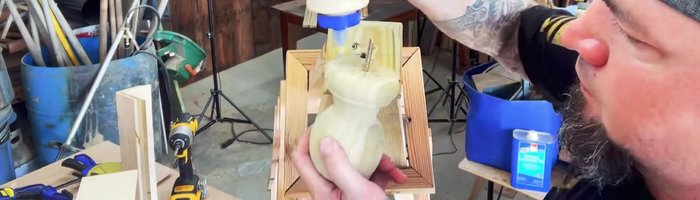

    • Attach the post cap. Drill a larger hole to thread the post cap onto the top and secure with glue.
    Attach the post cap. Drill a larger hole to thread the post cap onto the top and secure with glue.
    Attach Post Cap

Read more: Build a Stunning Black Walnut Coaster Set: The Ultimate Furniture Protector

Tips

  • Use exterior wood glue for better durability.
  • Pre-drilling prevents wood splitting.
  • Laying out square segments with longest edges facing each other simplifies alignment.
  • Clamping legs in place during assembly helps maintain stability and alignment.
  • Use deck screws at the end of every board for added strength.

Common Mistakes to Avoid

1. Using Arrows That Are Too Weak

Reason: Arrows that are flimsy or made of unsuitable material will bend or break under the weight of climbing plants.
Solution: Select strong, durable arrows made from sturdy wood or metal and ensure they are appropriately sized for the weight they will bear.

2. Insufficient Spacing Between Arrows

Reason: Crowding the arrows together limits plant growth and air circulation, leading to potential disease and reduced yield.
Solution: Space the arrows appropriately to allow for adequate plant growth and airflow, considering the mature size of the climbing plants.

FAQs

What type of wood is best for an arrow trellis?
Cedar, redwood, and pressure-treated pine are excellent choices because they're naturally rot-resistant and durable enough to withstand outdoor elements. Avoid using softwoods like pine unless it's pressure-treated, as they're more prone to rot.
How deep should I bury the posts for my arrow trellis?
At least 2-3 feet deep is recommended for stability, especially in areas with harsh weather. Consider using concrete to secure the posts firmly in the ground.
What's the best way to attach the arrows to the trellis framework?
Use galvanized or stainless steel screws to attach the arrows to the frame. Pre-drill holes to prevent splitting the wood. Consider adding exterior wood glue for extra strength and water resistance.
